What other requirements does the ISO 7176 series of standards have for electric wheelchairs?

Analysis of the comprehensive requirements of the ISO 7176 series of standards for electric wheelchairs

I. Introduction
The ISO 7176 series of standards is an internationally recognized standard system for wheelchair products, which provides detailed specifications for the design, production and testing of electric wheelchairs. These standards not only cover the basic performance requirements of electric wheelchairs, but also involve many other key aspects to ensure the safety, reliability and applicability of electric wheelchairs. This article will introduce in detail other important requirements of the ISO 7176 series of standards for electric wheelchairs.

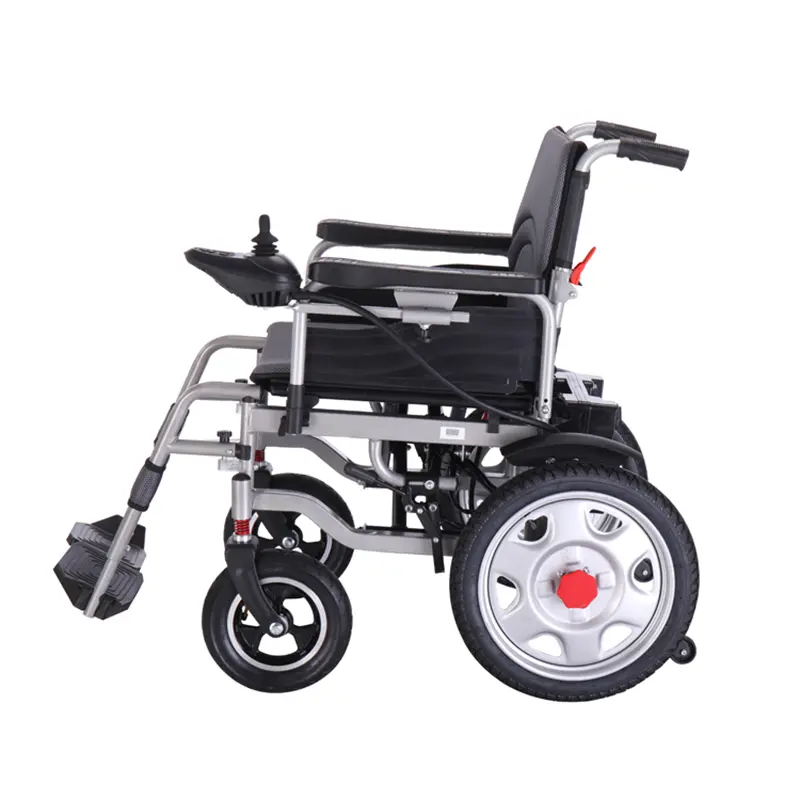

Folding Eelectric Wheelchair

II. Other requirements of the ISO 7176 series of standards for electric wheelchairs
(I) Stability requirements
Static stability: ISO 7176-1:2014 specifies the test method for determining the static stability of wheelchairs, which is applicable to manual and electric wheelchairs with a maximum speed not exceeding 15 km/h. The standard provides a method for measuring the rollover angle, but it does not apply to wheelchairs with lateral anti-rollover devices.
Dynamic stability: ISO 7176-2:2017 specifies the test method for determining the dynamic stability of electric wheelchairs, which is applicable to electric wheelchairs with a maximum rated speed not exceeding 15 km/h. This standard ensures that electric wheelchairs remain stable during driving.

(ii) Braking performance requirements
ISO 7176-3:2012 specifies test methods for measuring the braking effect of manual wheelchairs and electric wheelchairs (including scooters) with a maximum speed not exceeding 15 km/h. The standard also specifies disclosure requirements for manufacturers.

(iii) Energy consumption and endurance
ISO 7176-4:2008 specifies methods for determining the theoretical distance range of electric wheelchairs (including mobility scooters) by measuring the energy consumed while driving and the rated energy of the wheelchair battery pack. This standard applies to electric wheelchairs with a maximum nominal speed not exceeding 15 km/h.

(iv) Dimensions, mass and maneuvering space
ISO 7176-5:2008 specifies methods for determining the dimensions and mass of wheelchairs, including the external dimensions of the wheelchair when occupied by a reference occupant and the specific methods for maneuvering space required for common wheelchair movements in daily life. The standard also specifies requirements for disclosing dimensions and mass.

(V) Seat and wheel dimensions
ISO 7176-7:1998 specifies methods for measuring the seat and wheel dimensions of wheelchairs for wheelchairs and vehicles for disabled persons with a mass not exceeding 120 kg that move indoors or outdoors at a speed not exceeding 15 km/h.

(VI) Climate adaptability
ISO 7176-9:2009 specifies requirements and test methods for determining the effects of rain, dust, condensation and temperature changes on the basic functions of electric wheelchairs (including scooters) with a maximum speed not exceeding 15 km/h.

(VII) Obstacle climbing ability
ISO 7176-10:2008 specifies test methods for determining the ability of electric wheelchairs (including scooters) to climb and descend obstacles at a maximum rated speed not exceeding 15 km/h.

(VIII) Electromagnetic compatibility
ISO 7176-21:2009 specifies requirements and test methods for electromagnetic radiation and electromagnetic immunity of electric wheelchairs and scooters for indoor and/or outdoor use by persons with disabilities with a maximum speed of no more than 15 km/h. The standard also specifies electromagnetic compatibility requirements and test methods for battery chargers for electric wheelchairs and scooters.

(IX) Information disclosure, documentation and labeling
ISO 7176-15:1996 specifies the information, documentation and labeling that manufacturers should provide when supplying wheelchairs.

(X) Flame resistance of cushioned parts
ISO 7176-16:1997 specifies requirements and test methods to evaluate the ability of all posture support devices that are part of the wheelchair to resist the equivalent of a match flame.

III. Summary
The ISO 7176 series of standards covers a wide range of requirements for electric wheelchairs, from stability and braking performance to energy consumption, size, climate adaptability, obstacle climbing ability, electromagnetic compatibility, information disclosure, documentation and labeling, and flame resistance of cushioned parts. These requirements ensure the safety, reliability and applicability of electric wheelchairs under various conditions of use, provide manufacturers with clear design and production guidance, and provide users with high-quality product guarantees.
